1-48_Modular Walls

Allow 2-3 weeks for shipping.

Each is custom cast when ordered.

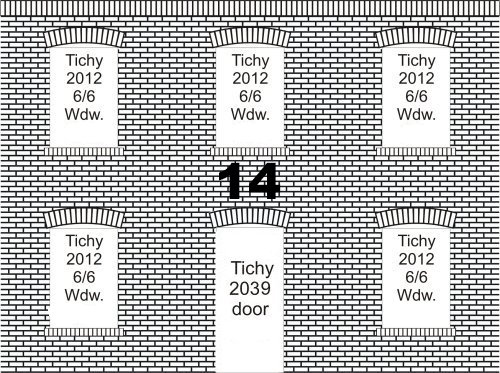

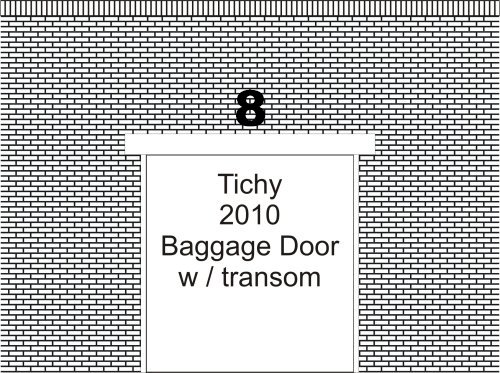

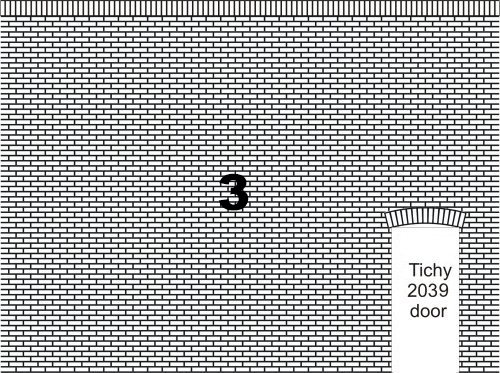

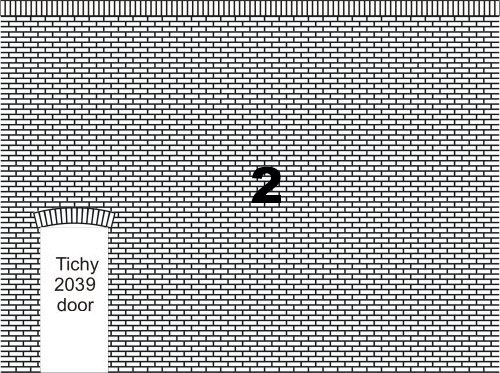

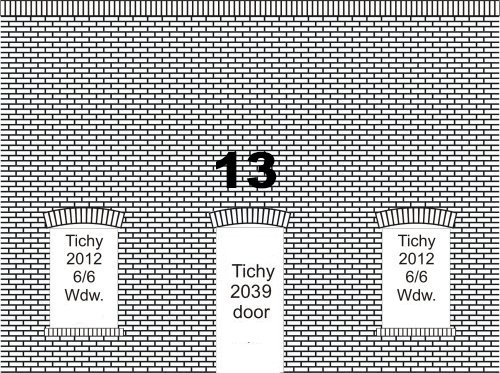

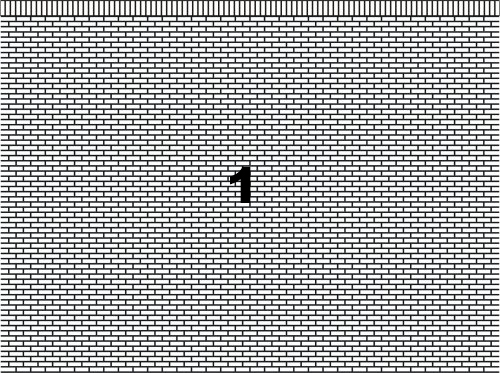

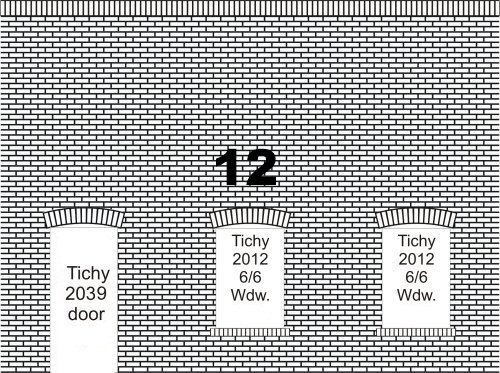

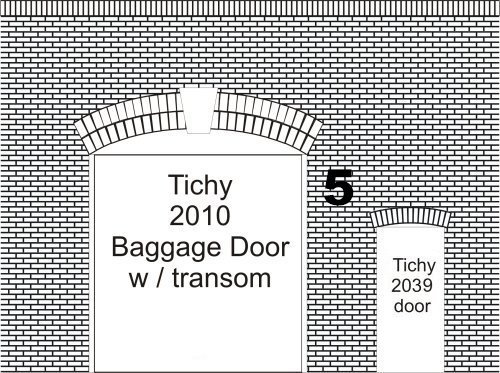

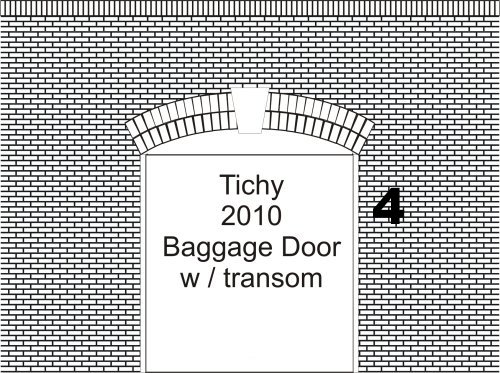

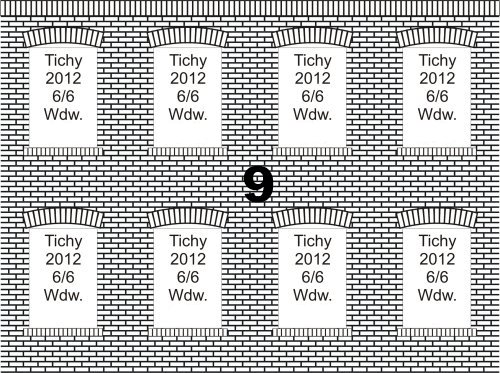

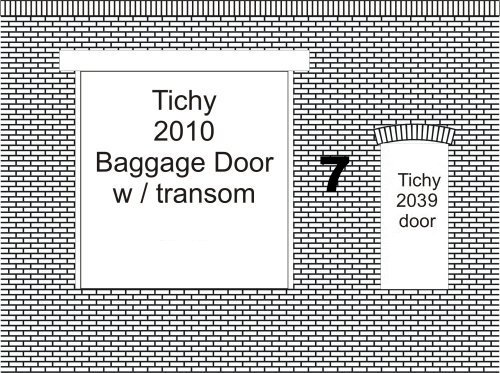

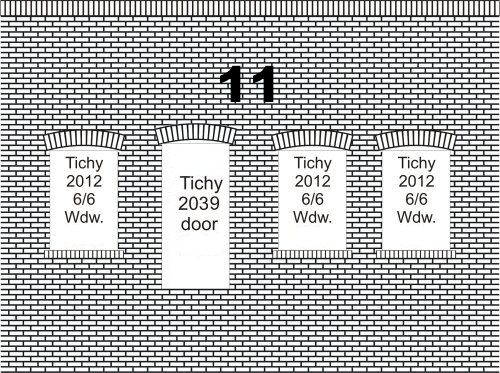

Each RESIN walls include Tichy doors and windows (no glazing) as shown.

The walls abut each other with no margin but may require sanding to get the fit you want it.

You may want to add downspouts, conduit, or other scenic details to disguise the joints.

***************************

They can be assembled as a FLAT, a SHALLOW (3d Background structure),

or get enough for all sides and add your own roofing for a freestanding structure.

There are an assortment of ground and dock level height walls.

***************************

Each wall is approx 6" wide and 4 1/2" tall and are

$10.50 unless otherwise indicated + shipping

***************************

They are designed to be assembled using just the basics:

A hobby knife, file or sandpaper, CA (we prefer Zap-A-Gap), and your choice of paint.

1/4" square wood stock (not incl.) can be applied on the back side for bracing.

***Full size .pdf files for the walls are below in the green box

***Also the 2nd batch of walls are in development and include ones for angled roofs, loading dock

walls, cornices, and transition from ground to dock height walls are coming.

Background behind the reason for the sizes:

After asking many of my professional trucker friends and measuring dozens of prototypes across the US for the past 10 or so years I noticed similar numbers kept popping up for both truck and rail service.

For warehouse areas, these walls represent buildings with a dock 4’ high, and an interior clearance roughly 12’ with supporting posts 24’ apart, typical of manufacturing and freight handling areas built from the 1890s through the 1960s.

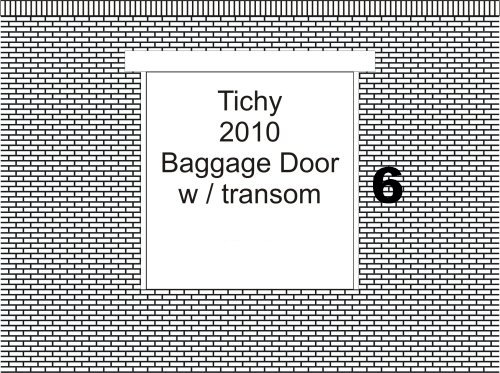

Used for rail service, the standard on these brick buildings tended to have loading doors far enough apart for a 40’ car to be loaded so Wall #6 is perfect.
